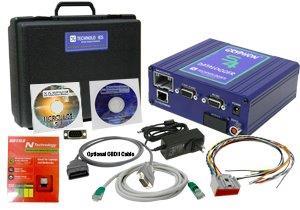

Featuring our high-end analyzer, Hercules, and compact S4 wireless hardware, this package is designed to support advanced communication with in-vehicle networks for use in a variety of OEM and supplier applications including diagnostics, simulation, and various custom applications.        See the Datasheet for more information.

Hercules supports CAN, Class2, and LIN protocols along with full support for GMLAN diagnostics.  It also includes graphical display, real-time data playback, and hot-key service sending, among many other features.

*For a complete list of all of the Hercules features, please refer to its technical data sheet, and the Gryphon / S-CAT Modules data sheet.

The Gryphon S4 hardware is compact, fast, and has built-in support for CAN, along with one expansion slot to support a specific plug-in protocol module. Read about Gryphon  Modularity.
Additionally, it includes a 10/100T Ethernet connection.

Supported Protocols (Gryphon S4 package): CAN (canbus), GMLAN (including SW-CAN for GMW3089 revision 2.2), ISO9141-2, ISO11898 (CAN), ISO15765, J1850 GM (Class 2), J1939, J1979, J2284, J2411 (GM SWCAN), J2534, KWP2000 (ISO14230), LIN.

Gryphon Videos:

Introduction to using the G2 as a vehicle network communication device to design and development a vehicle network

How to use the Tx and Rx functions to send and receive messages on the data bus

Common Applications

Application	Description
Monitoring Analysis Diagnosis	GRYPHON S4 is also used as an interface for our Hercules CAN Analyzer software tool. Hercules is our high performance Windows analyzer software with protocol support for CAN (canbus), GMLAN, ISO11898 (CAN), ISO15765, J1850 GM (Class 2), J1939, J1979, J2284, J2411 (GM SW), LIN and SWCAN.
PV / DV Interface Analysis Diagnosis	Included in test stand applications.

Available Accessories and Options

The following items are available.
